PWM T20 T30 Solar Controller 20A 30A 12Vdc 24Vdc Solar Panel Battery Regulator Charge Controller USB 5V LCD Display Controller
SPECIFICATIONS:
|
Paramacter/Model |
PWM T20 |
PWM T30 |
|
Maximum power current |
20A |
30A |
|
lnstallation Lin(mm2) |
10mm2 |
10mm2 |
|
Weight |
380g |
380g |
|
Dimensions |
188 × 93 × 50(mm) |
188 × 93 × 50(mm) |
|
System load loss |
≤13mA |
≤13mA |
|
Loop Buck |
≤100mA |
≤100mA |
|
Battery float voltage |
13.8V(12V system) / 27.6V(24V system) |
13.8V(12V system) / 27.6V(24V system) |
|
Battery(under voltage)protection |
10.6V(12V system) / 21.2V(24V system) |
10.6V(12V system) / 21.2V(24V system) |
|
Battery(under voltage)rccovcry voltage |
12.6V(12V system) / 25.2V(24V system) |
12.6V(12V system) / 25.2V(24V system) |
|
Charge mode |
MPPT+PWM MODE |
MPPT+PWM MODE |
|
Opcrating Tcmpcrature |
-10℃~60℃ |
-10℃~60℃ |
|
Storage Tcmpcraturc |
-30℃~70℃ |
-30℃~70℃ |
|
Humidity rcquircmcnts |
≤90%, No condensation |
≤90%, No condensation |
|
Tcmpcratrc compcnsation |
-4mV/Cell/℃ |
-4mV/Cell/℃ |
|
Temperature Probe (built components) |
NTC 100K thermistats |
NTC 100K thermistats |
|
Maximum open circuit voltage of the solar panel |
18V-24V(12V system)36-48V(24V system) |
18V-24V(12V system)36-48V(24V system) |
|
olar panels maximun open circuit voltage(V) |
≤48V |
≤48V |

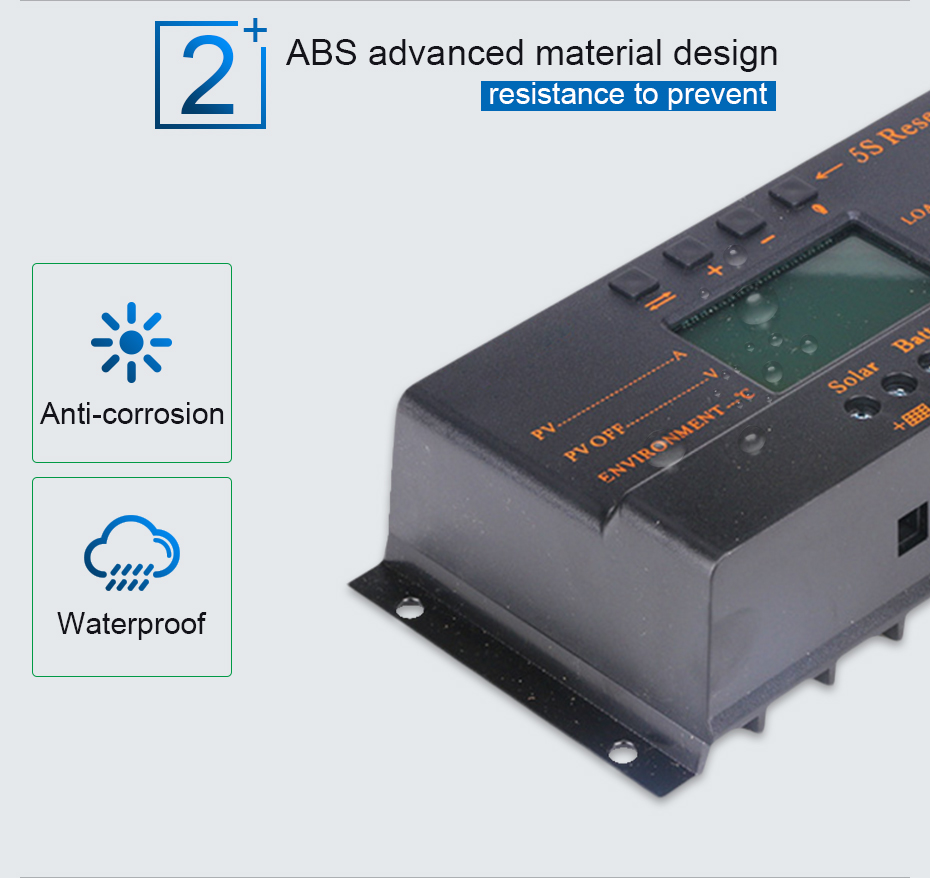

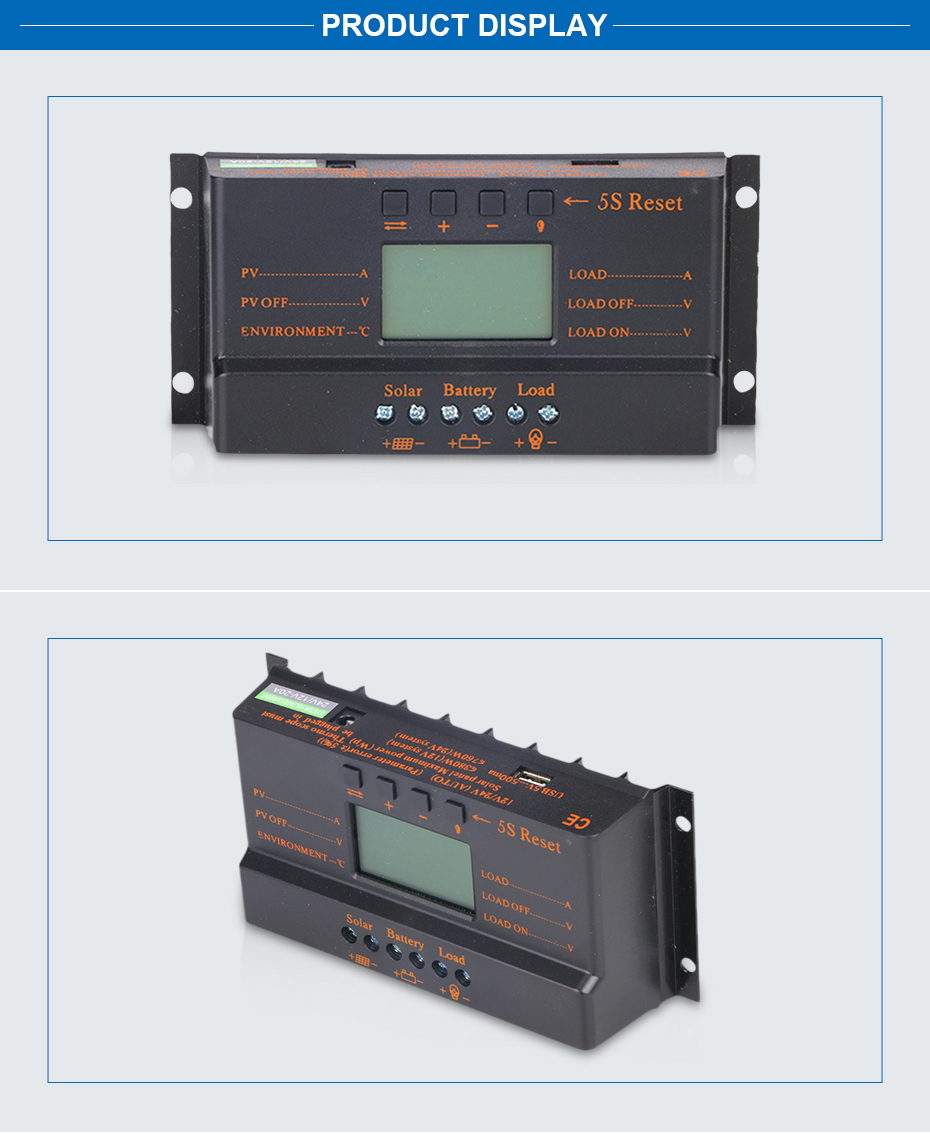

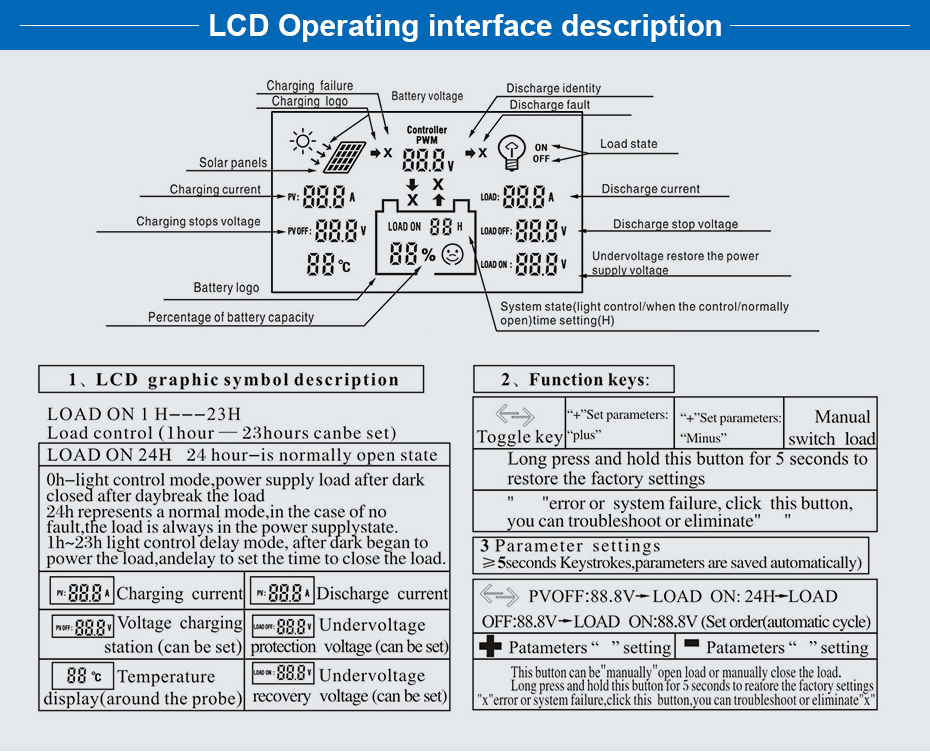

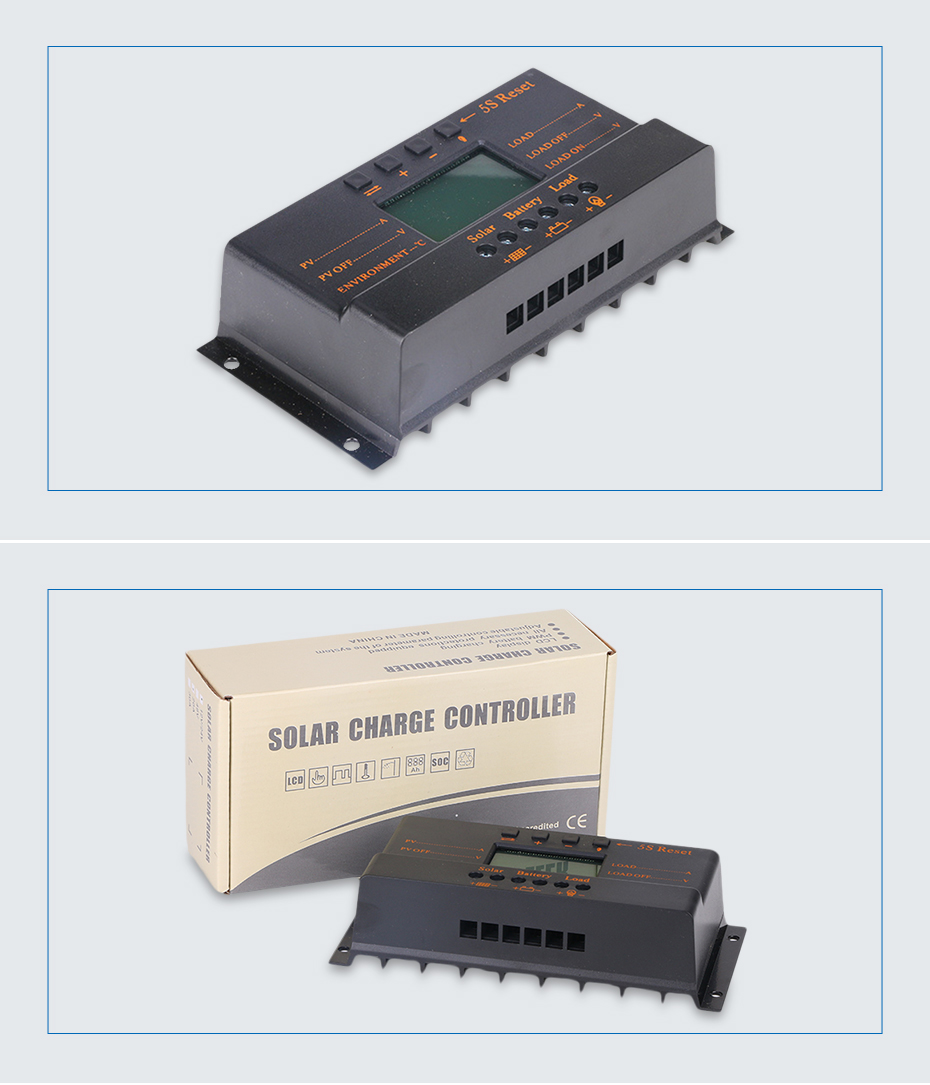

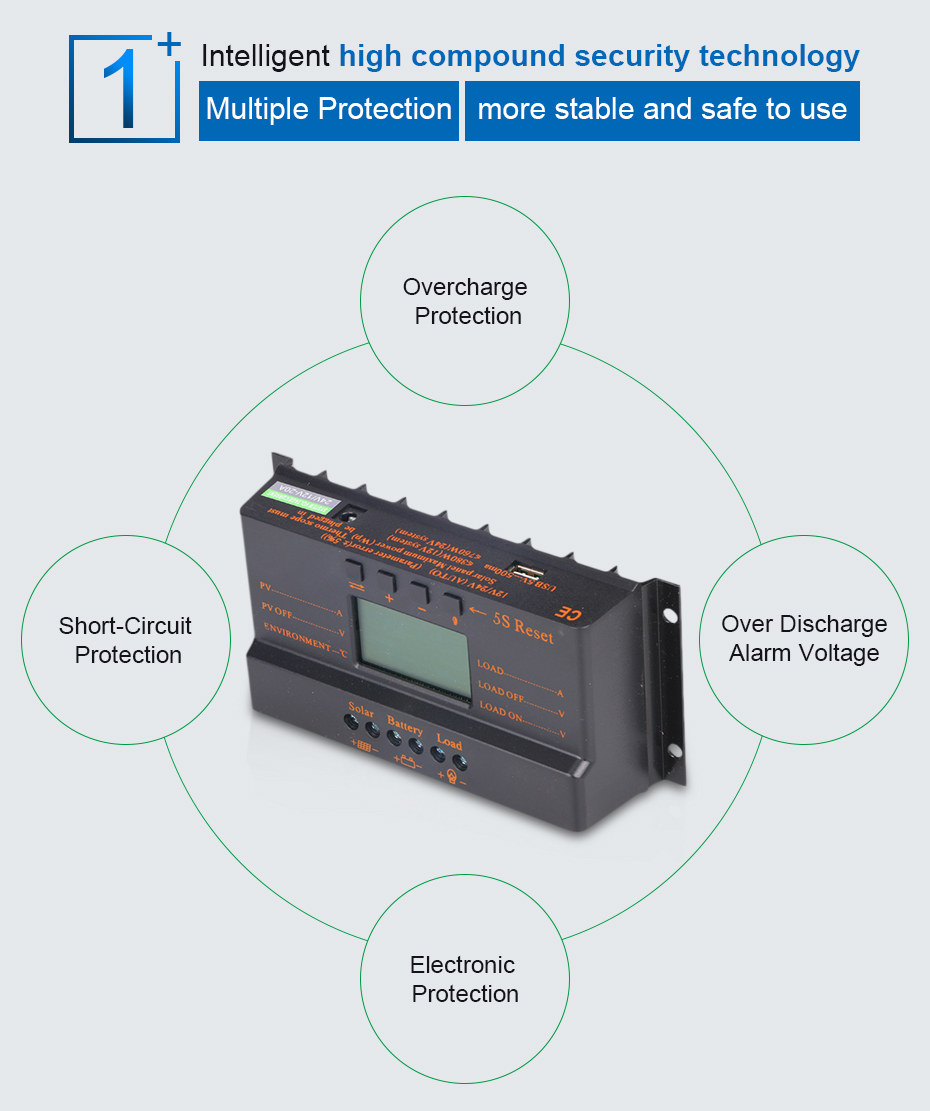

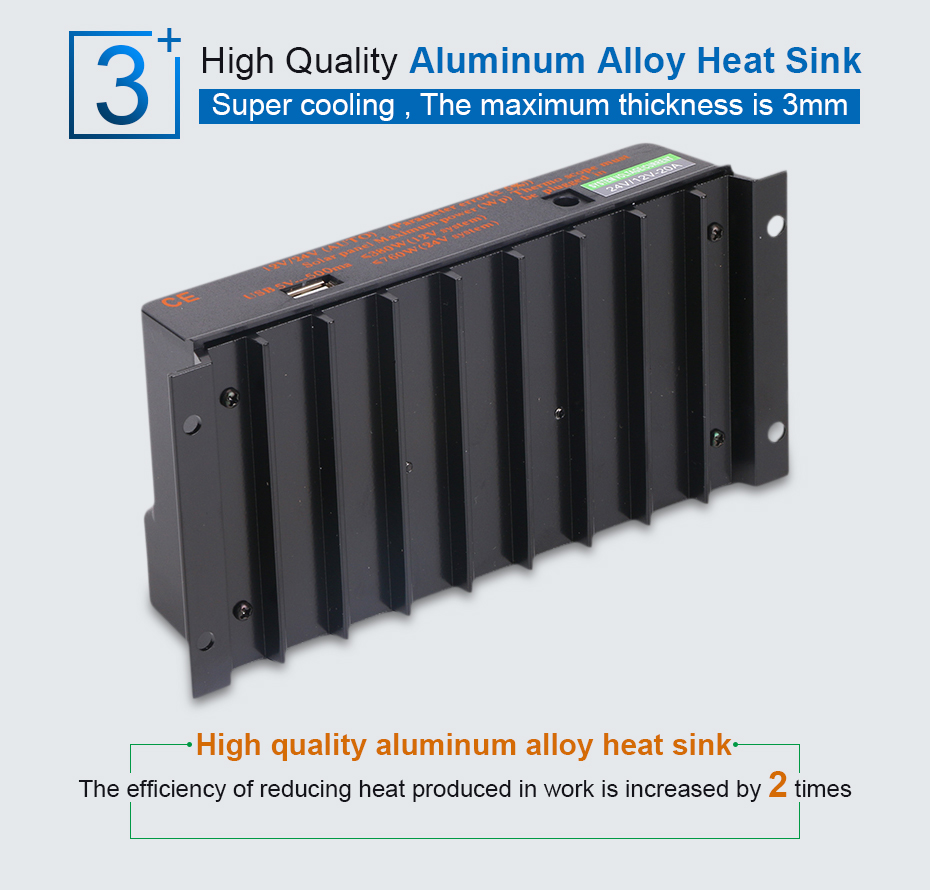

PICTURES SHOW:
