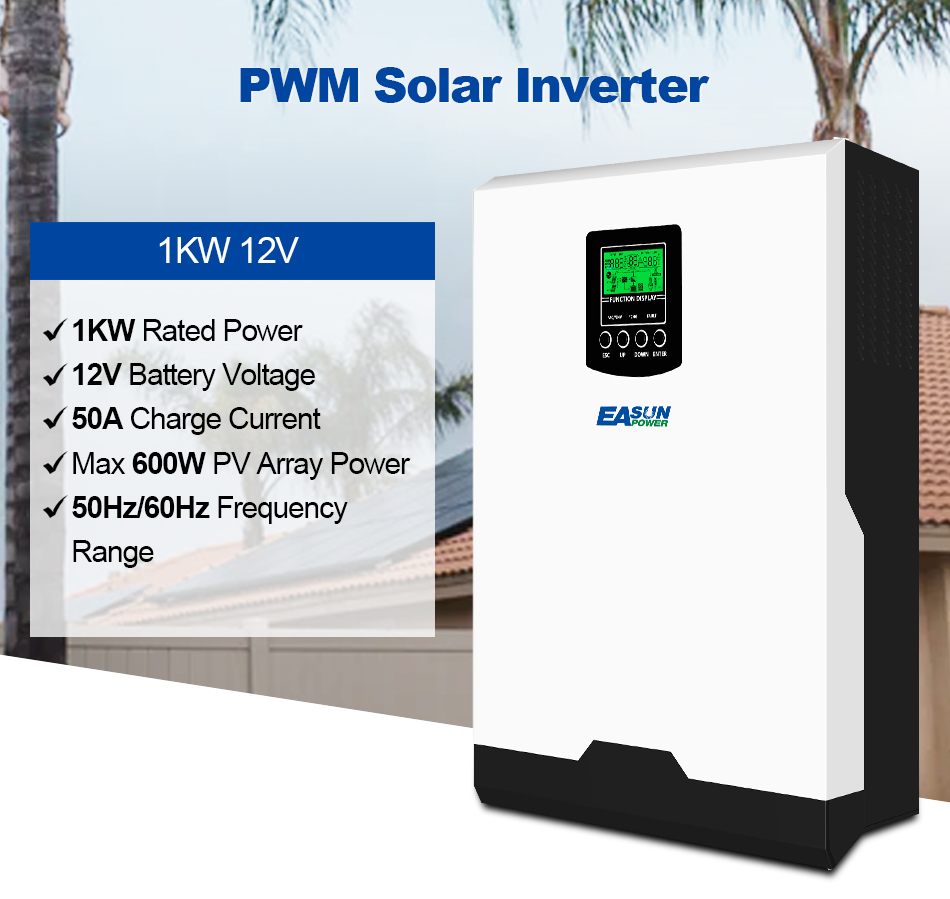

EASUNPOWER Solar Inverter 1KW 12V Off Grid 220V 50HZ/60HZ 1000W Pure Sine Wave inversor 50A PWM Solar Charge Controller
|
MODEL |
ISolar SPR1K12V |
|
Rated Power |
1000VA/1000W |
|
INPUT |
|
|
Voltage230 VAC |
|
|
Selectable Voltage Range |
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) |
|
Frequency Range |
50Hz/60Hz(Autosensing) |
|
OUTPUT |
|
|
ACVoltageRegulation(Batt.Mode) |
230VAC ± 5% |
|
Surge Power |
2000VA |
|
Efficiency (Peak) |
90%～93% |
|
Transfer Time |
10 ms (For Personal Computers) ; 20 ms (For Home Appliances) |
|
Waveform |
Pure Sinewave |
|
BATTERY |
|
|
Battery Voltage |
12VDC |
|
Floating Charge Voltage |
13.5VDC |
|
Overcharge Protection |
16VDC |
|

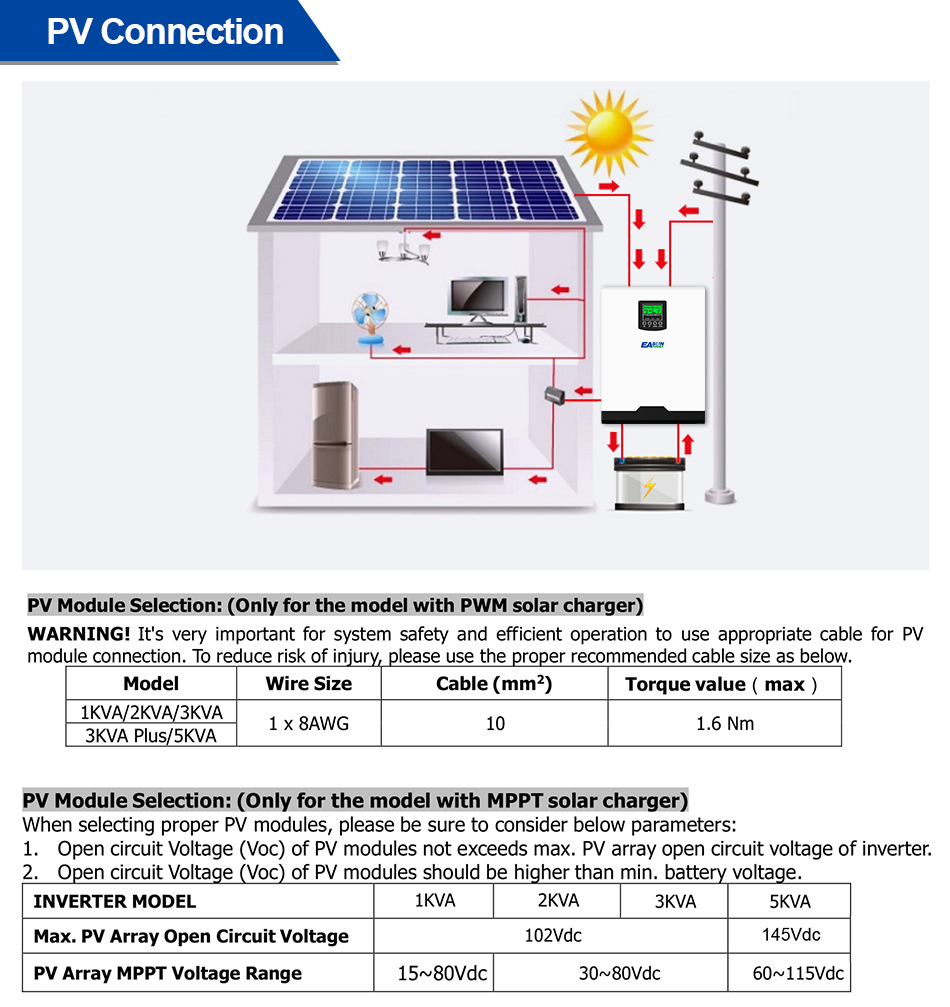

SOLAR CHARGER&ACCHARGER |
|
|
Solar Charger type |
PWM |
|
MaximumPVArray Open CircuitVoltage |
55VDC |
|
Maximum PV Array Power |
600W |
|
MPPT Range@OperatingVoltage |
N/A |
|
Maxmum Solar Charge Current |
50A |
|
Maximum AC Charge Current |
20A |
|
Maximum Charge Current |
50A |
|
PHYSICAL |
|
|
Dimension,D x W x H(mm) |
88x225x320 |
|
Net Weight (kgs) |
4.4 |
|
Communication Interface |
USB/RS232 |
|
ENVIRONMENT |
|
|
Humidity |
5% to95%Relative Humidity(Non |
|
Operating Temperature |
-10°C to 50°C |
|
Storage Temperature |
-15°C to 60°C |
